ELIXIRFAB / MANUFACTURING & METROLOGY
Our Equipment
From turning and milling to dimensional verification.

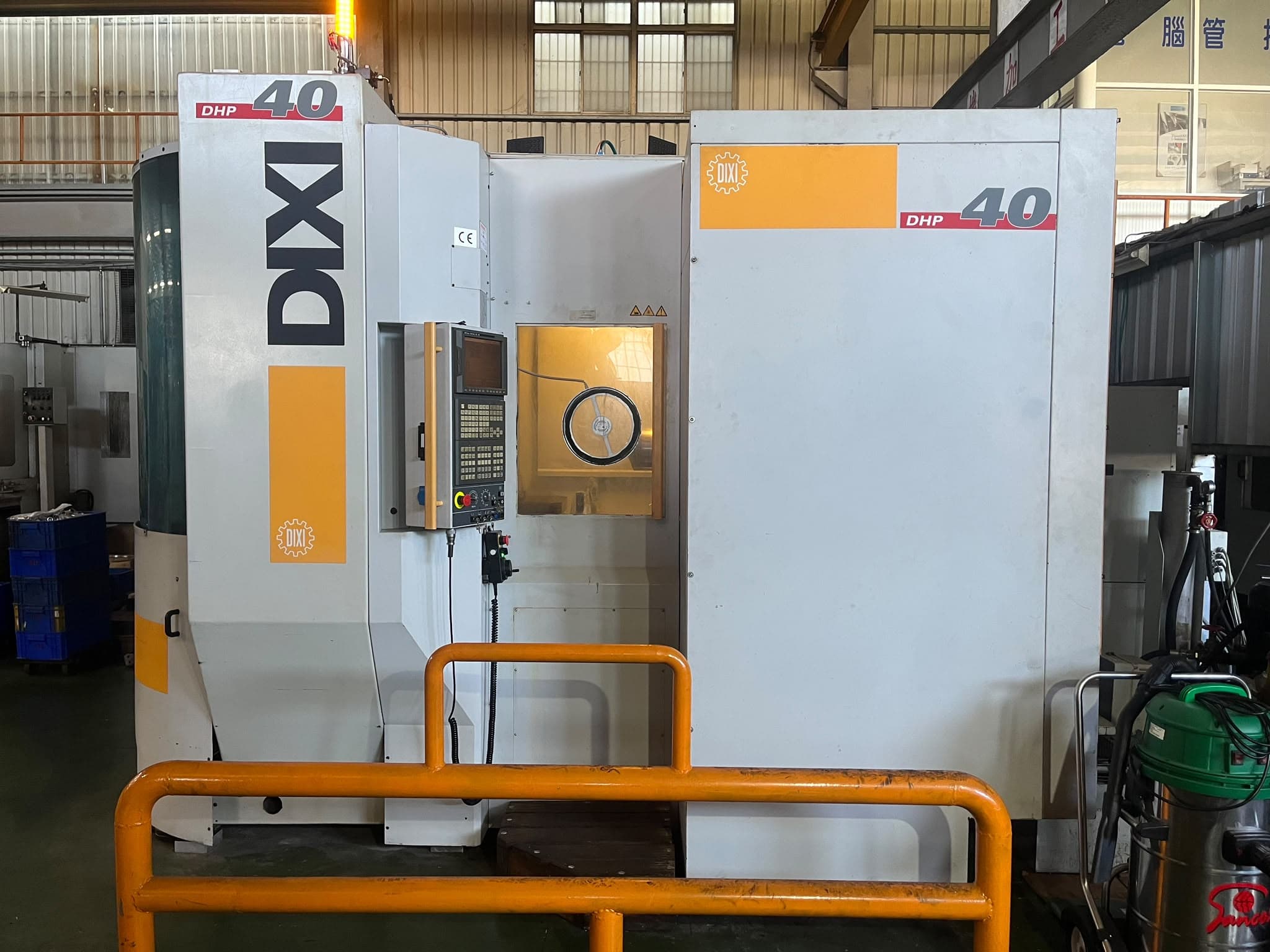

DIXI DHP 40
Horizontal machining for milled and bored features. Workholding, tool access and inspection are planned around the drawing.
Manufacturing roots. A wider range of processes.
ElixirFab draws on our family's machining factory in Dadu, Taichung, founded in 1973 and now led by the third generation, and works with Asian partner factories for complementary processes. Equipment is selected around your part, not the other way around. The machine configuration, production route, schedule and inspection requirements are confirmed for each project.
01
Multi-Tasking Mill-Turn

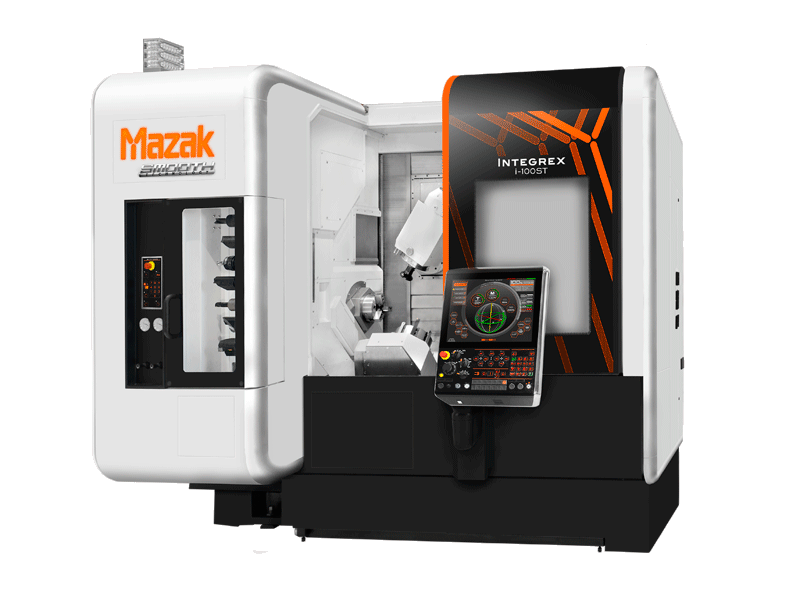

- Mazak INTEGREX i-100ST
For parts that combine turned diameters with flats, slots, cross-holes or other milled features, a multi-tasking route can bring operations together and reduce transfers between machines. Whether the part can be finished in one setup depends on its geometry, tooling and the actual machine configuration.
- Before we quote
- Feature access, shared datums, workholding and any remaining secondary operations.
02
Swiss-Type CNC Turning

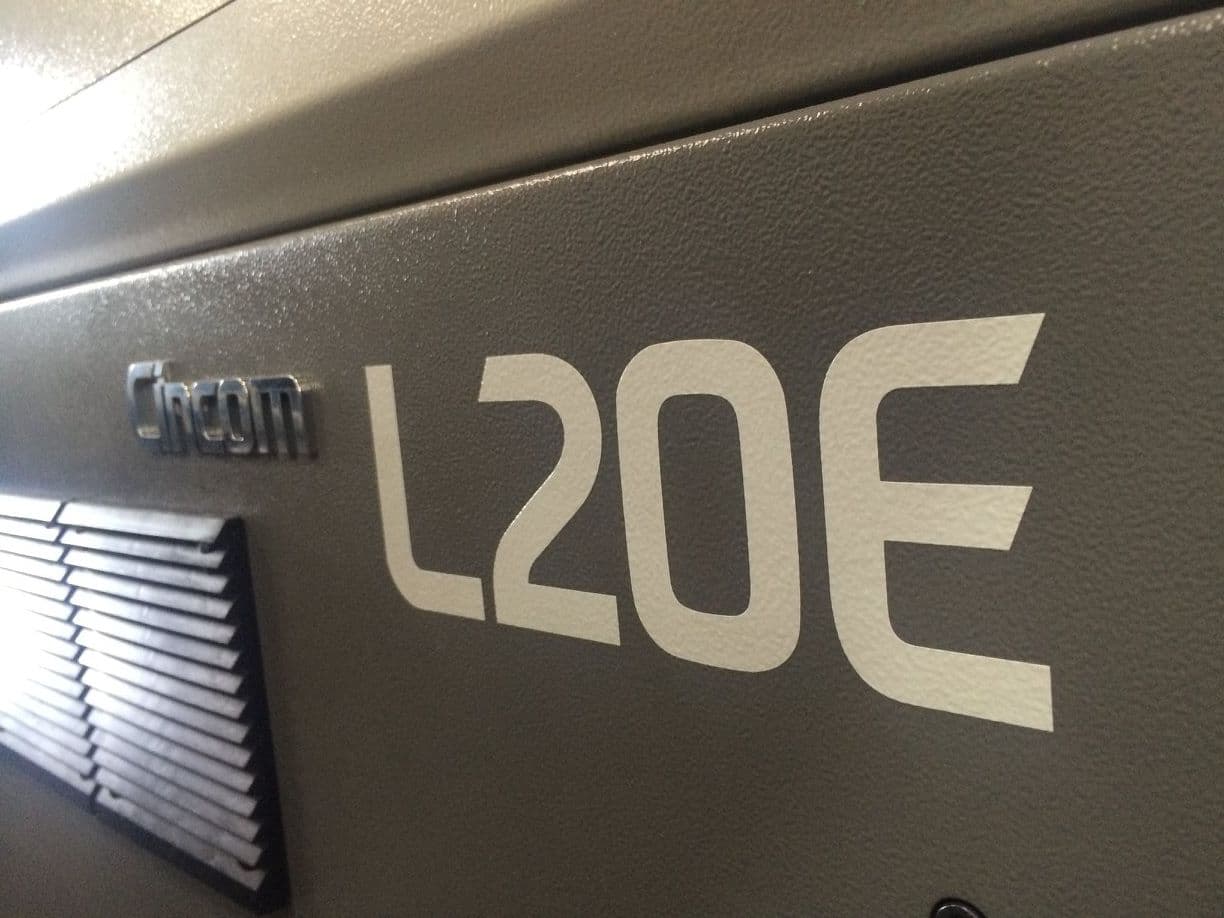

- Citizen Cincom L20E

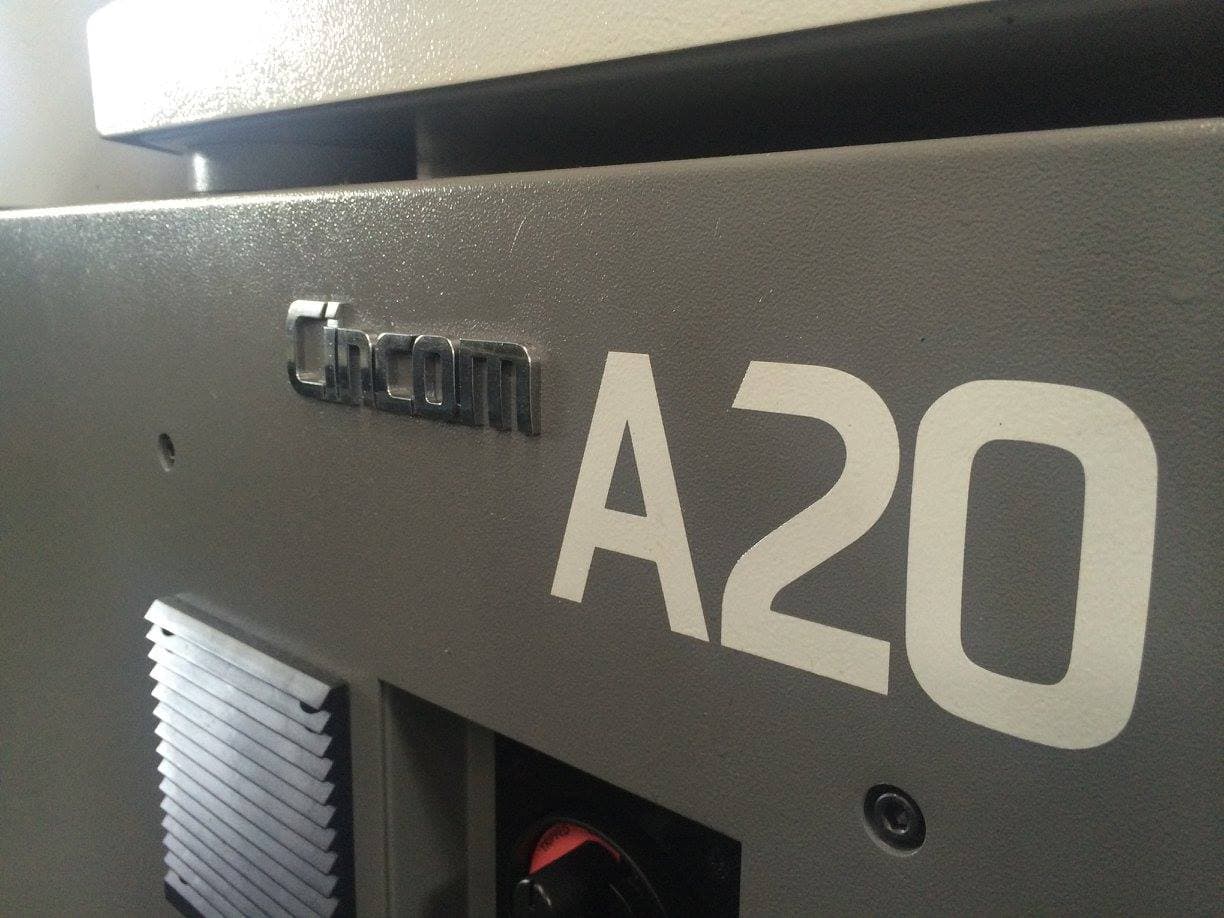

- Citizen Cincom A20

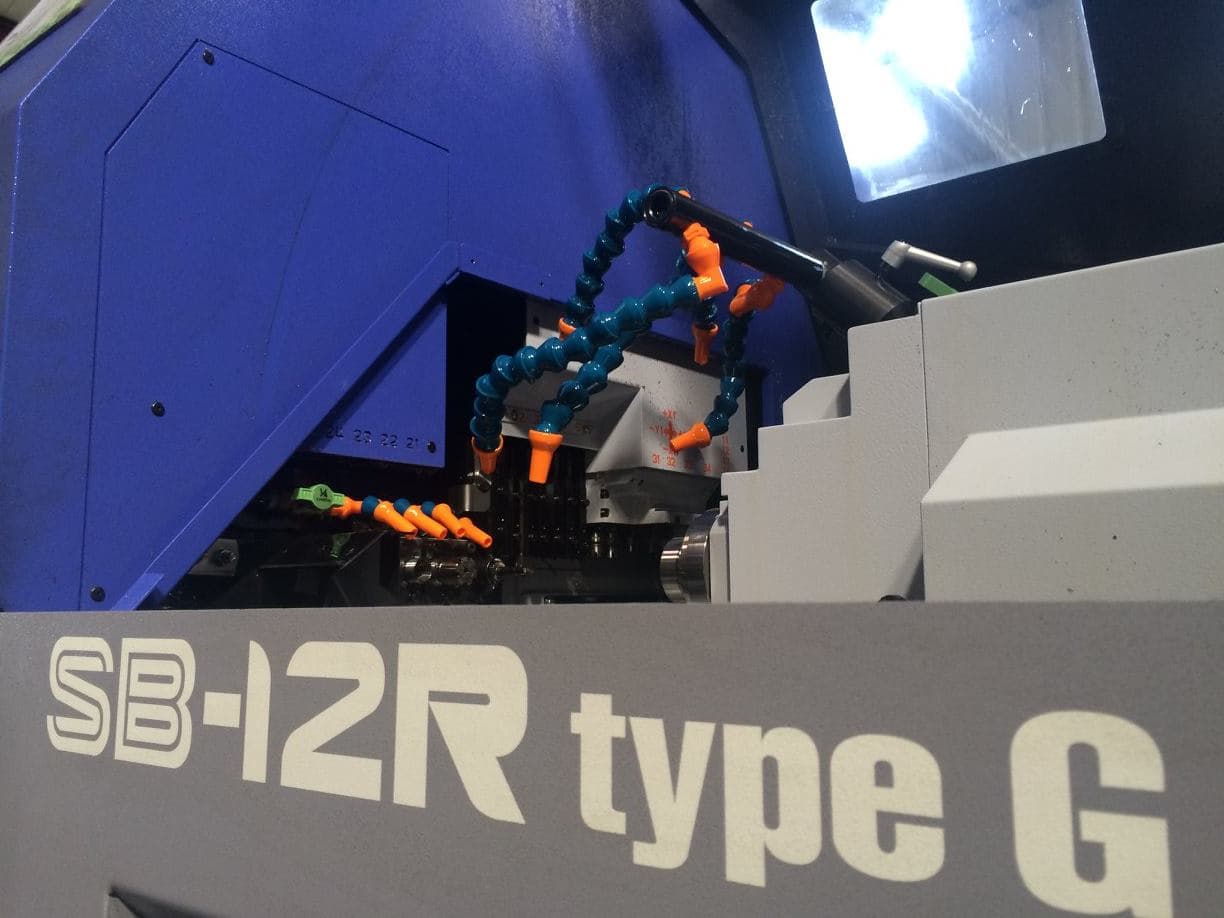

- Star SB-12R type G
Small shafts, pins, sleeves and connectors often combine slender profiles with threads, grooves and cross-holes. Swiss-type machining is evaluated around bar-stock support and the full feature sequence, not the nominal diameter alone. Burr control and access for measuring small features are considered from the start.
- Before we quote
- Bar-stock condition, length-to-diameter ratio, critical features, burr limits and repeat-order quantities.
03
Horizontal & Vertical Machining
- DIXI DHP 40

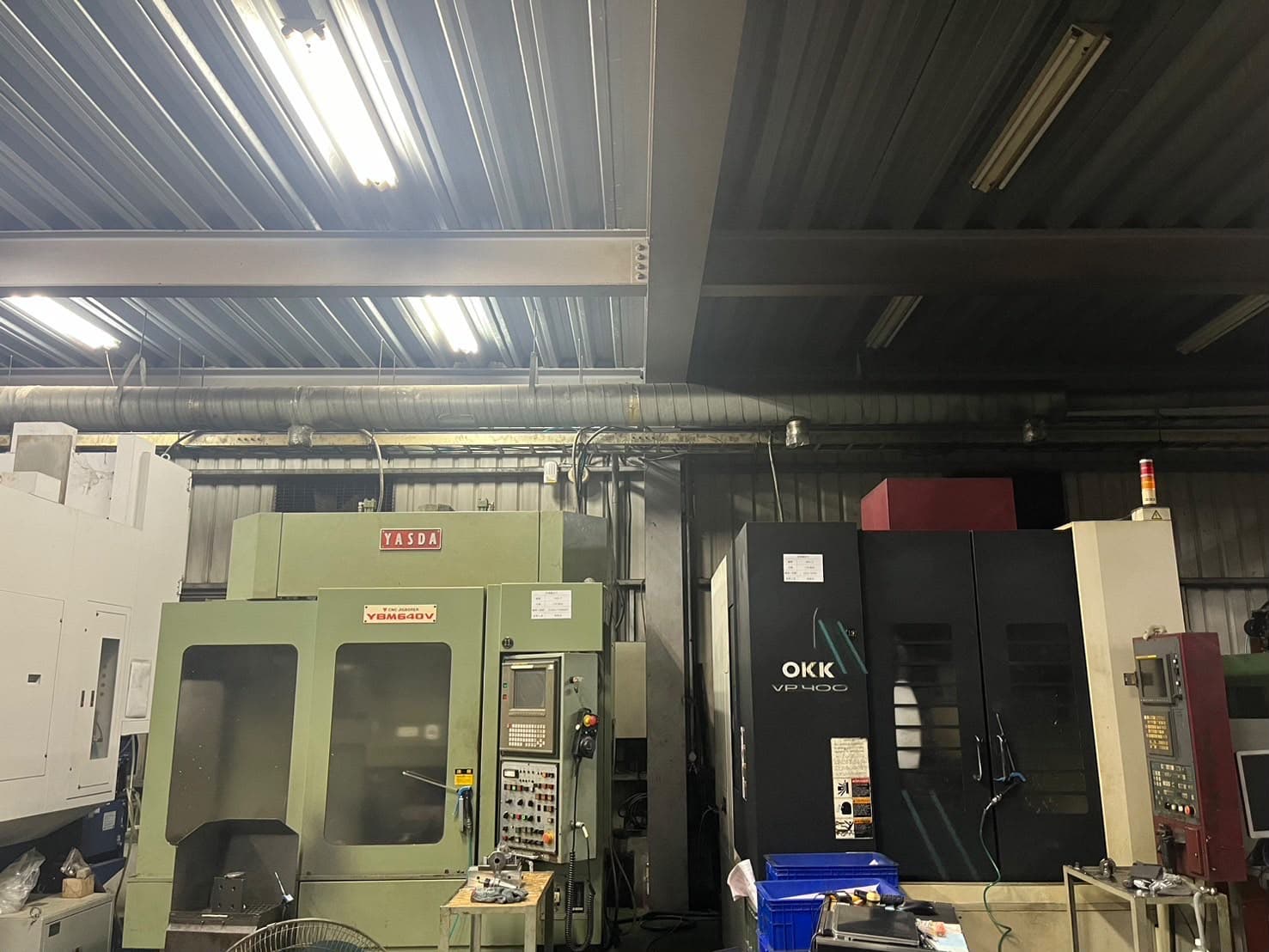

- YASDA YBM640V
- OKK VP400

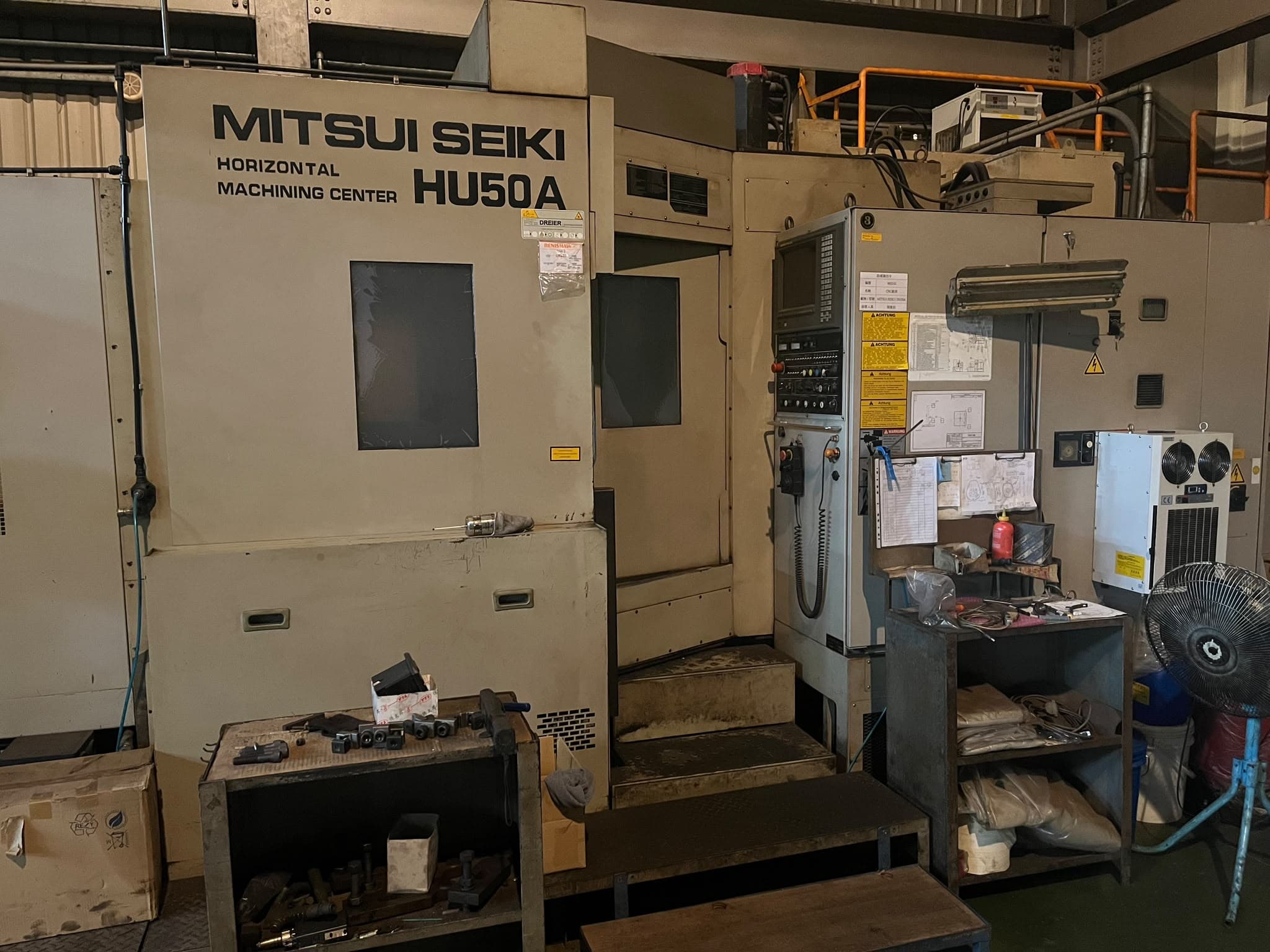

- MITSUI SEIKI HU50A
Machining centers support the faces, pockets, contours and hole patterns found in housings and precision components. Horizontal and vertical routes are selected according to feature access, part support and datum relationships. Workholding planning and intermediate checks matter as much as the machine name.
- Before we quote
- Overall envelope, clamping surfaces, multi-face relationships, tool reach and inspection points.
04
Production CNC Turning

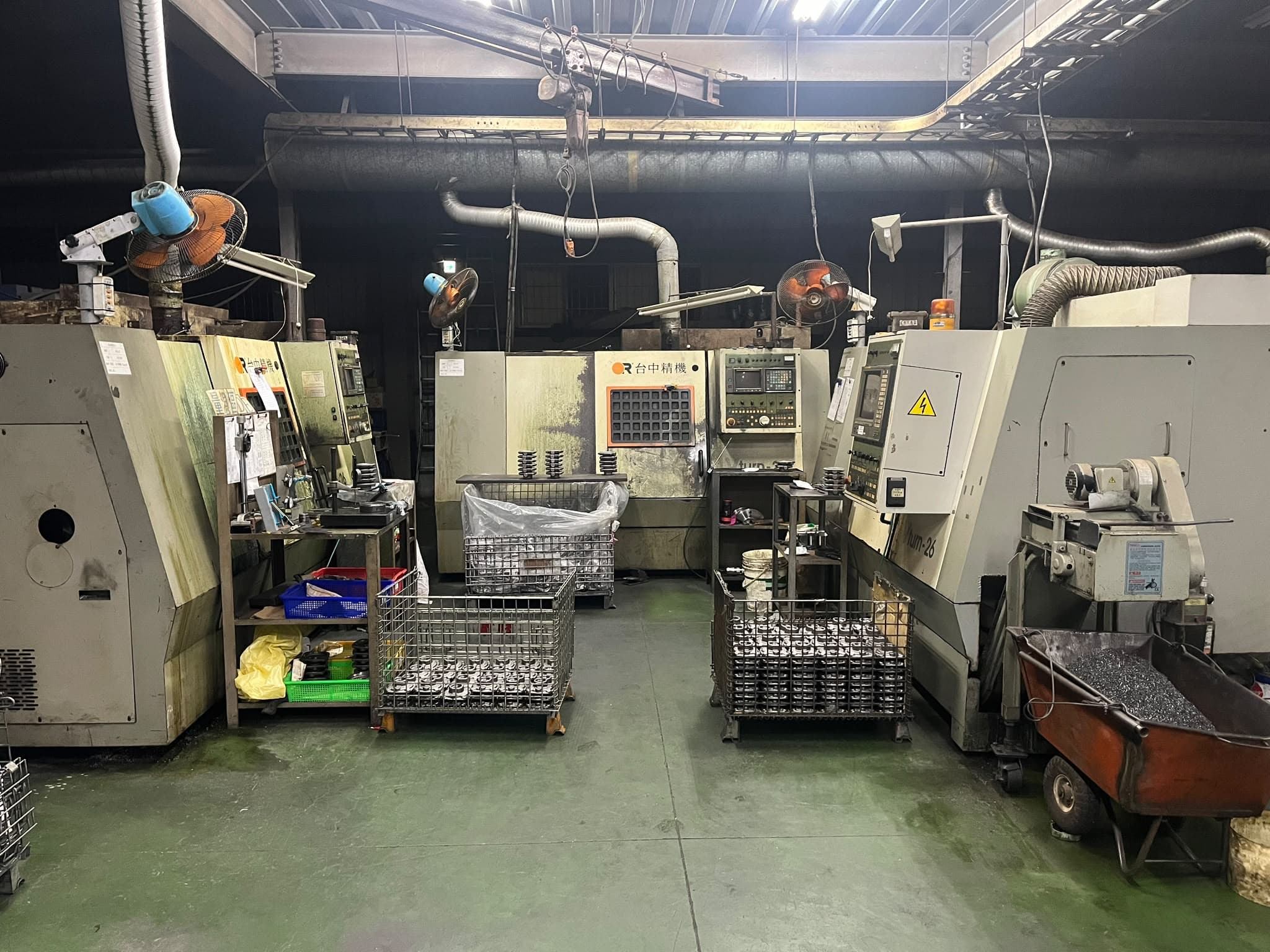

- Victor Taichung / 台中精機
Conventional CNC turning is evaluated for rotational parts with external diameters, bores, threads and grooves. Moving from an approved sample into repeat production also means planning tool wear, material batches, sampling and handling between operations.
- Before we quote
- Raw-stock size, part support, surface requirements, batch size and sample acceptance.
05
Coordinate Measurement

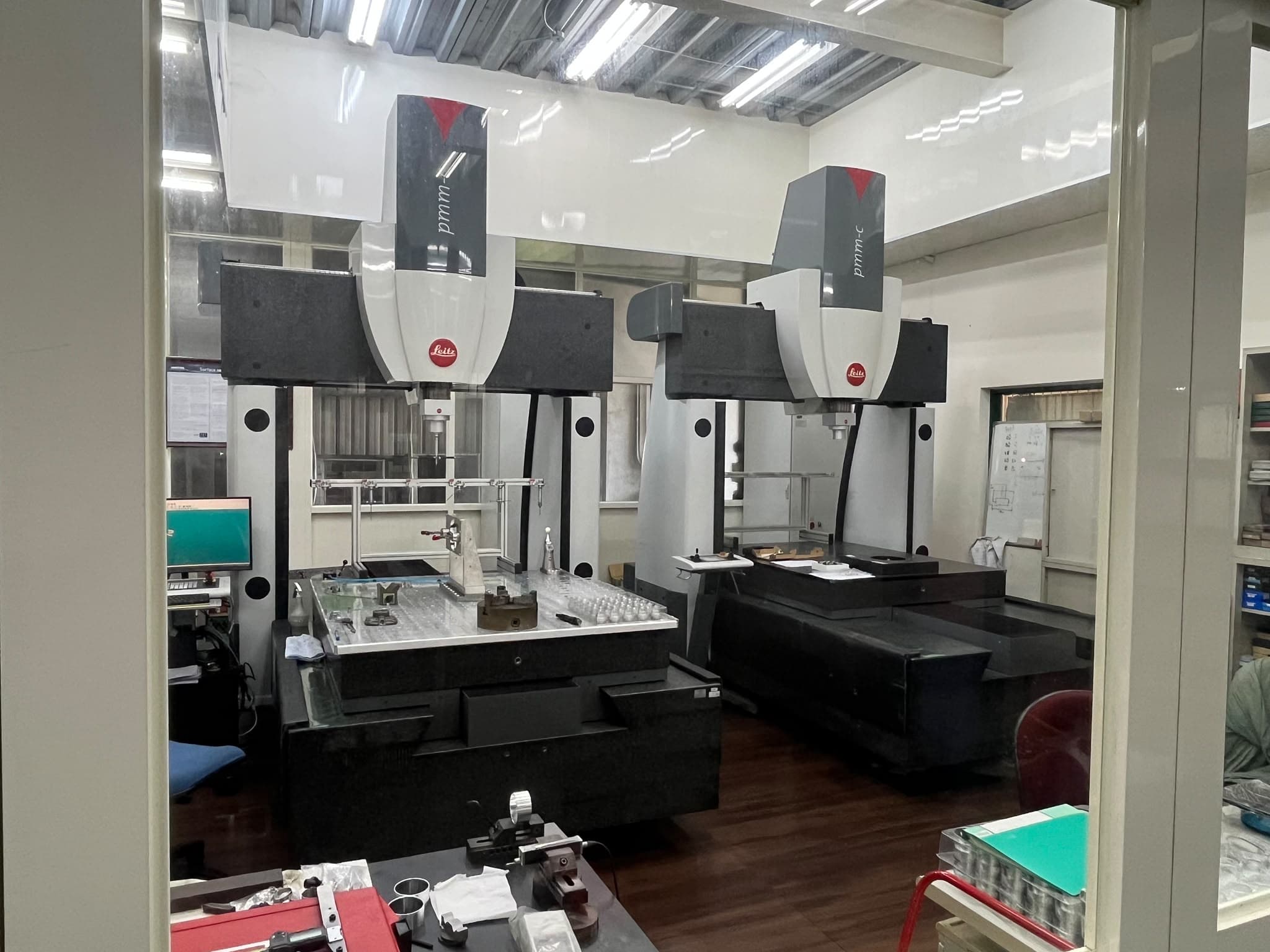

- Leitz coordinate measuring machines / 三次元量測設備
Critical dimensions and geometric relationships need an inspection plan, not just a machine specification. Coordinate measurement can support the verification of datums, positions and profiles where appropriate. Probe access, measurement conditions and the required report are reviewed against the drawing.
- Before we quote
- Critical characteristics, datum scheme, measurement access, sampling and required records.
The drawing defines the requirement.
Machine names and photographs do not establish a guaranteed tolerance, working envelope or current availability. We review material, geometry, quantity, finish and critical characteristics before confirming the manufacturing and inspection plan. The Mazak image is a catalog reference; the other images show equipment details and factory scenes supplied for this page.
Manufacturer references
References describe equipment families, not the installed specifications of the pictured machines.
YOUR NEXT PART
Let's choose the process for your part.
Share your drawing, material, quantity and critical requirements. If an NDA is needed, contact us before sending confidential files.
